Author Topic: Hand Guards Gallery  (Read 15550 times)
0 Members and 1 Guest are viewing this topic.
Peter
Candyman
******
10/12/03 1453 Hours
Posts: 5688

DL1000K2 (sold)
Singapore
www Offline
« on: 11/11/06 1013 Hours »
| All unread Move to top Move to bottom

For the benefit of all member, please use this thread for posting your hand guard photos together with a few word to usability.

PS 1: Please mention the V-Strom model they are on, there are three different types depending on the V-Strom model.

PS 2: For aftermarket hand guards, members are always interested to know how they mount.

I will start.
Logged

Peter
PEOPLE WHO HAVE VISIONS SHOULD GO TO SEE THEIR DOCTOR

Peter
Candyman
******
10/12/03 1453 Hours
Posts: 5688

DL1000K2 (sold)
Singapore
www Offline
« REPLY #1 on: 11/11/06 1030 Hours »
| All unread Move to top Move to bottom

DL1000 K2- K3 style hand guards









Mounting details:



I used some extra wide washers, because otherwise the eyelets will break.



For my hands enough space, bigger hands probably could have some more space.




They are open ended. I looked with envy at the K4 style close ended hand guards when they came out. Now I think this older type is simple and fully sufficient for what I need from hand guards, which is mainly
- protection from the morning cold
- some rain protection
They should be indispensable for cold riding, in conjunction with a good pair of heated grips.

On one occasion they probably saved my hand from great pain or more, when I was hitting a car mirror when fiddling through the peak traffic here. The left hand guard snapped back onto my hand, but otherwise distributed the impact.
Logged

Peter
PEOPLE WHO HAVE VISIONS SHOULD GO TO SEE THEIR DOCTOR
yiannis
***
10/19/03 2105 Hours
Posts: 342

Seattle, WA
Offline
« REPLY #2 on: 11/11/06 1101 Hours »
| All unread Move to top Move to bottom

Acerbis Multiplo Touring.

These have a metal insert and use a separate bracket to attach on the handle bars. I got tired of breaking levers but of course once I got these the bike decided it wants to stay upright for a change.

Some notes
- They work as good as the 02 style I had in the beginning or the 04 ones I had afterwards in terms of weather protection.
- You can't use handlebar weights with these, but I can't say I miss them, I didn't notice any increase in vibration without them.
- I think they look great, they come in many colors
- Much more expensive, around $100 for the set and brackets but maybe worth it if they save a couple of levers in the future.
- No problems with windshield-tank clearance but I'm using risers and pro-taper handlebars.
- You can replace the plastic part if it breaks , or you can take it out completely in the summer while keeping just the inner bracket.


and someone else's bike from the gallery
Logged
BBurton
Guest
« REPLY #3 on: 11/11/06 1442 Hours »
| All unread Move to top Move to bottom

Thanks for the great pics Peter, that is exactley what I was looking for. Grin  Seems that it should be plug and play, for me to switch over to these gaurds. They seem to use the same upper and lower mounting posts, that I currently have on my 05.

Thanks again!!!!!

BB
Logged
babooka
**
04/14/06 0215 Hours
Posts: 61
NY Tristate Area
Offline
« REPLY #4 on: 01/05/07 0241 Hours »
| All unread Move to top Move to bottom

Any photos of Powermadd or Probend on the Strom's?
Logged
Busaroop
VSRI Supporter
****
01/20/04 0250 Hours
Posts: 110

Daphne Alabama
Offline
« REPLY #5 on: 05/05/07 0133 Hours »
| All unread Move to top Move to bottom

These are on my K2. I had them on stock bars and these bars which are CR high bend that I got off Flea-bay. They mounted fine on both, just a lil tinkering to get them right. They are Acerbis.



Logged
bry_wang
**
12/26/06 0136 Hours
Posts: 57
DL650k6
Brooklyn, NY
www Offline
« REPLY #6 on: 05/16/07 1731 Hours »
| All unread Move to top Move to bottom

Cycra Probends with Uclamps
i had the zuk ones on my SV and they cracked from a drop from the centerstand so I skipped them for my DL, the bars are pro bend SE mid ATV




here's a link to advrider
http://www.advrider.com/forums/showthread.php?t=167358&highlight=probends
Logged
K1W1
****
10/22/06 0015 Hours
Posts: 623

DL650K7
Dandenong Ranges
Offline
« REPLY #7 on: 05/16/07 2208 Hours »
| All unread Move to top Move to bottom

Suzuki standard hand gurads fitted to an 07 Wee. No modification required despite the rumours.



Logged
Peter
Candyman
******
10/12/03 1453 Hours
Posts: 5688

DL1000K2 (sold)
Singapore
www Offline
« REPLY #8 on: 07/07/07 0257 Hours »
| All unread Move to top Move to bottom

Quote:

K1W1 wrote on 17.05.2007 05:08[/i]
Suzuki standard hand gurads fitted to an 07 Wee. No modification required despite the rumours.



Not rumours, Suzuki said that.

Logged

Peter
PEOPLE WHO HAVE VISIONS SHOULD GO TO SEE THEIR DOCTOR
Peter
Candyman
******
10/12/03 1453 Hours
Posts: 5688

DL1000K2 (sold)
Singapore
www Offline
« REPLY #9 on: 07/07/07 0313 Hours »
| All unread Move to top Move to bottom

This must be the nicest hand guards that I ever saw on a V-Strom.





Fit's without modification to the DL650. Get them from your KTM dealer. Photos and info by German stromer Guschtl at http://www.v-stromforum.de .
Logged

Peter
PEOPLE WHO HAVE VISIONS SHOULD GO TO SEE THEIR DOCTOR
greywolf
VSRI Supporter
****
01/31/06 0643 Hours
Posts: 3198

DL650AL2
Evanston IL USA
www Offline
« REPLY #10 on: 07/07/07 0401 Hours »
| All unread Move to top Move to bottom

Suzuki didn't really say anything about the hand guards for '07. They just took them off the list of accessories. I put them on anyway and had no problems.
Logged

Pat
Nicknames I use to lessen typing - Vee=2002 - 2012 DL1000s, Veek=2014+DL1000As, Wee=2004-2011 DL650s, Glee=2012+DL650As
Redbike
***
05/16/07 0440 Hours
Posts: 103
K7 Wee
Edmonton, AB, Canada
www Offline
« REPLY #11 on: 07/07/07 0446 Hours »
| All unread Move to top Move to bottom

Quote:

greywolf wrote on 06.07.2007 21:01[/i]
Suzuki didn't really say anything about the hand guards for '07. They just took them off the list of accessories. I put them on anyway and had no problems.




They are now showing again in the parts list, which is an improvement, but are marked "backorder"; I guess that's progress...

Logged

"'The only reason for time is so that everything doesn't happen at once"  Albert Einstein.
garandman
**
06/09/07 0218 Hours
Posts: 59
Boston, PRM, USA
Offline
« REPLY #12 on: 07/07/07 2015 Hours »
| All unread Move to top Move to bottom

Quote:

Peter wrote on 06.07.2007 21:13[/i]
This must be the nicest hand guards that I ever saw on a V-Strom.
Fit's without modification to the DL650. Get them from your KTM dealer. Photos and info by German stromer Guschtl at http://www.v-stromforum.de .



Those are slick!

I found them online in the US for US$50 at http://www.ktmcyclehutt.com/ktmstore/hardparts/ktm_handguards.htm

Logged
Peter
Candyman
******
10/12/03 1453 Hours
Posts: 5688

DL1000K2 (sold)
Singapore
www Offline
« REPLY #13 on: 07/08/07 0323 Hours »
| All unread Move to top Move to bottom

Don't forgot to order this along



for the next winter blues.
Logged

Peter
PEOPLE WHO HAVE VISIONS SHOULD GO TO SEE THEIR DOCTOR
Anonymous
Guest
« REPLY #14 on: 08/04/07 1915 Hours »
| All unread Move to top Move to bottom

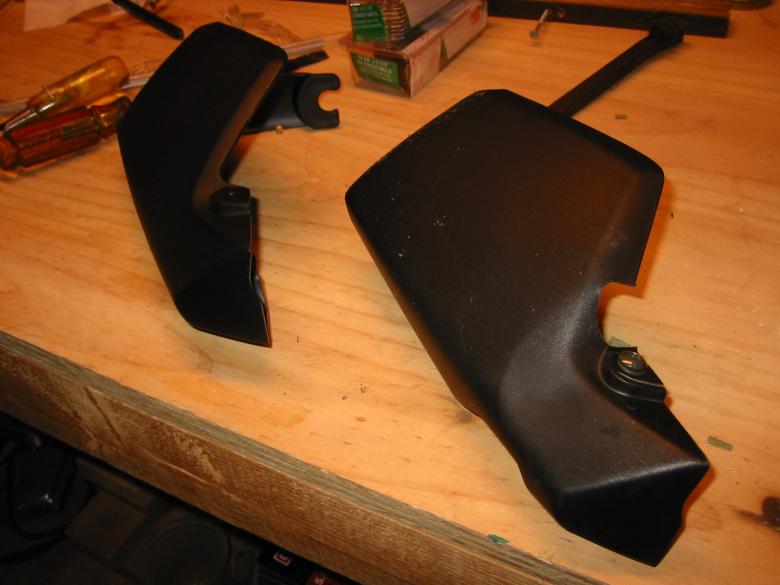

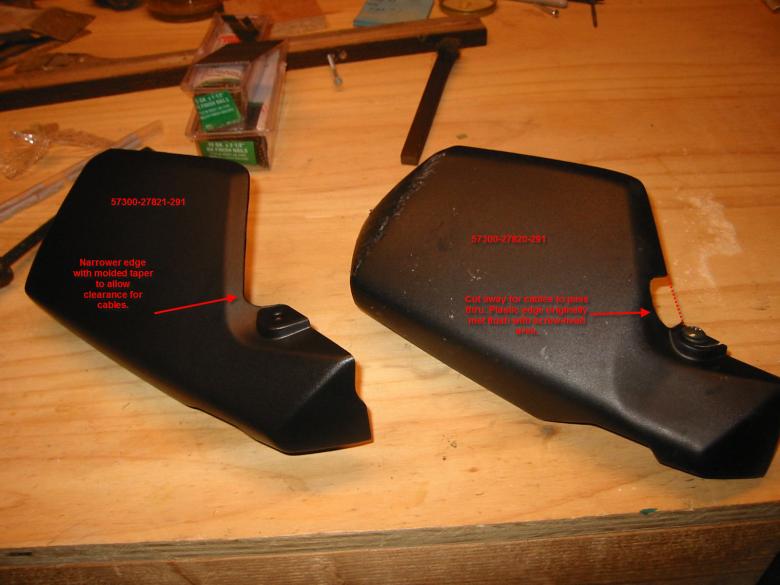

These photos show a comparison of the right handguards for Suzuki model numbers 57300-27821-291 (left) and 57300-27820-291 (right).




(edit: repaired photo links, jw see: http://11109.rapidforum.com/topic=101673213070 )
Logged
kflg
*
08/12/07 0211 Hours
Posts: 4
Medina, TX
Offline
« REPLY #15 on: 10/28/07 2052 Hours »
| All unread Move to top Move to bottom

Quote:

garandman wrote on 07.07.2007 15:15[/i]

Quote:

Peter wrote on 06.07.2007 21:13[/i]
This must be the nicest hand guards that I ever saw on a V-Strom.
Fit's without modification to the DL650. Get them from your KTM dealer. Photos and info by German stromer Guschtl at http://www.v-stromforum.de .



Those are slick!

I found them online in the US for US$50 at http://www.ktmcyclehutt.com/ktmstore/hardparts/ktm_handguards.htm


These are slick, so looked them up on the KTM site and it looks like you need to order the guard mounts with them ($42.95), so might want to check before ordering.

Logged
pismocycleguy
*****
01/23/04 2235 Hours
Posts: 1012

2013 DL650 on order
Kalifornia Koast
Offline
« REPLY #16 on: 10/28/07 2147 Hours »
| All unread Move to top Move to bottom

I found them online in the US for US$50 at http://www.ktmcyclehutt.com/ktmstore/hardparts/ktm_handguards.htm

These are slick, so looked them up on the KTM site and it looks like you need to order the guard mounts with them ($42.95), so might want to check before ordering.
(Above quoted from kflg)

What you need:
I ordered the KTM hand guards from the cyclehutt and installed them on my Wee. No additional parts are required. No additional guard mounts are necessary. The hand guards for $49.99 include everything necessary. I ordered the black model. I installed them on my Magura EX handlebars. Fit nice and look great. Grin
PCG
Logged

FARKLES TRIED:
SEATS: Wee, Vee, Tall Touring,  SuzukiGel, Bill Mayer, Renazco, Mitch's, Sargent
WINDSHIELDS: OEM, Suzuki Tall, Rifle (3 versions), Zero Gravity, Givi, MRA Vario, CalSci, Cee Bailey (2 versions), Puig, PowerBronze, Terry's Okla., Madstad, MP Cycle Design Touring, Sport and Mini
Anonymous
Guest
« REPLY #17 on: 11/18/07 0048 Hours »
| All unread Move to top Move to bottom

Power Madd Star Series Hand Guards
For info on installing these and more pics goto:
http://11109.rapidforum.com/topic=112170465289


Logged
trailbuster30
**
12/21/05 1715 Hours
Posts: 75
Spokane, WA
www Offline
« REPLY #18 on: 12/09/07 2324 Hours »
| All unread Move to top Move to bottom

The KTM handguards are actually made by Polisport, called Polisport sharp.

I found a set locally at a bike shop back in 04 for my wee, and I agree they look like they came with the bike, they have a kinda bat wing look about them.

Western Power Sports distributes them here in the US. I've tried to locate a web address to post here with little luck but you should be able to see them by googling this title:


POLISPORT SHARP HANDGUARDS from Western Power Sports ATV...

They come in diff colors Red,blue,silver,yellow etc. Price $39.95

If your search using the above title won't work email me at CHERDAN@webtv.net and I'd be happy to send along an attachment page with all the info.


Dan


Logged
CecilSaxon
*
07/14/06 0430 Hours
Posts: 7

Clarksville, TN
Offline
« REPLY #19 on: 01/20/08 0404 Hours »
| All unread Move to top Move to bottom



Anyone else done this?

5/8 hole drilled with a spade type wood drill bit and then for winter I cover with 5/8 plastic hole cover. Works well for me.

Used standard Suzuki Hand guard.
Logged

CS
Clarksville, TN
Blue DL650K7- Madstad, Grip Puppies, Givi E30 & E21s, Suzuki Handguards, Stebel Nautilus - my wife says thats enough.
HYLYNDYR
Guest
« REPLY #20 on: 03/15/08 1530 Hours »
| All unread Move to top Move to bottom

Anyone have a pic from the side? Do the Acerbis have a bend in them like the Cycra guards ??


Quote:

yiannis wrote on 11.11.2006 04:01[/i]
Acerbis Multiplo Touring.

These have a metal insert and use a separate bracket to attach on the handle bars. I got tired of breaking levers but of course once I got these the bike decided it wants to stay upright for a change.



and someone else's bike from the gallery


Logged
RubberDown
*****
10/15/04 2131 Hours
Posts: 1090

Maryland
Offline
« REPLY #21 on: 04/18/08 0124 Hours »
| All unread Move to top Move to bottom

Quote:

BatCat6 wrote on 17.04.2008 17:40[/i]
I'm a little cheap when it comes to frills. So, I wanted to get handguards as cheaply as possible. I was at a church breakfast recently, and there was orange juice....MinuteMaid orange juice....in gallon jugs....orange jugs. Ummmm! Hand guards! Orange hand guards!




I'm all for penny-tech farkles but I got to see this!   Grin

FWIW....I think the Zook hand guards are actually a great value.  I think I paid $35 for my kit and they look good to boot.  There are way better choices than stock for protection if off-road is your thing, but for the street and mild dirt use the stock guards are actually pretty nice.  My $.02

Logged
blue strada
**
01/24/08 2138 Hours
Posts: 15
Charlotte, NC. USA
www Offline
« REPLY #22 on: 10/26/08 1844 Hours »
| All unread Move to top Move to bottom

Hello..
can anyone tell me whose handgaurds these are in the pictures... ?  Will they fit both 650 and 1K models for 08?
Thanks
Bill Kniegge
www.bluestradatours.com
Logged
pismocycleguy
*****
01/23/04 2235 Hours
Posts: 1012

2013 DL650 on order
Kalifornia Koast
Offline
« REPLY #23 on: 10/27/08 0134 Hours »
| All unread Move to top Move to bottom

Look like stock Suzuki V-Strom handguards. Grin
Logged

FARKLES TRIED:
SEATS: Wee, Vee, Tall Touring,  SuzukiGel, Bill Mayer, Renazco, Mitch's, Sargent
WINDSHIELDS: OEM, Suzuki Tall, Rifle (3 versions), Zero Gravity, Givi, MRA Vario, CalSci, Cee Bailey (2 versions), Puig, PowerBronze, Terry's Okla., Madstad, MP Cycle Design Touring, Sport and Mini
blue strada
**
01/24/08 2138 Hours
Posts: 15
Charlotte, NC. USA
www Offline
« REPLY #24 on: 10/28/08 1240 Hours »
| All unread Move to top Move to bottom

Thanks... I believe you are correct... and the designation seems to be that they are from the 02/04 era.  I am trying to decide which units to put on the 650's thatg we use.. More for weather protection than anything else... but they certainly help when a rider gets to close to things hard mounted to cars or the ground.. (had someone hit a mailbox actually!)
Thx again
Bill Kniegge
www.bluestradatours.com
Logged
Warhammer
A Blunt Instrument
***
09/05/08 0238 Hours
Posts: 139
2004 DL1000
North Texas
Offline
« REPLY #25 on: 11/23/09 1920 Hours »
| All unread Move to top Move to bottom

2004 DL1000

OEM hand guards with homemade top and bottom extensions





Logged
pismocycleguy
*****
01/23/04 2235 Hours
Posts: 1012

2013 DL650 on order
Kalifornia Koast
Offline
« REPLY #26 on: 11/24/09 0022 Hours »
| All unread Move to top Move to bottom

They look great! Thumbs Up
Logged

FARKLES TRIED:
SEATS: Wee, Vee, Tall Touring,  SuzukiGel, Bill Mayer, Renazco, Mitch's, Sargent
WINDSHIELDS: OEM, Suzuki Tall, Rifle (3 versions), Zero Gravity, Givi, MRA Vario, CalSci, Cee Bailey (2 versions), Puig, PowerBronze, Terry's Okla., Madstad, MP Cycle Design Touring, Sport and Mini
agolac
VSRI Supporter
****
11/11/08 2133 Hours
Posts: 156

DL650A K8 85 000 km
Rijeka, Croatia
Offline
« REPLY #27 on: 12/31/10 1401 Hours »
| All unread Move to top Move to bottom

Acerbis Rally 2. I installed them today.





















Logged

Flames of the end inside us rest...
calltrex
***
07/12/10 0339 Hours
Posts: 108

2010 650, ABS, Tour
Saskatchewan, Canada
Offline
« REPLY #28 on: 01/01/11 0429 Hours »
| All unread Move to top Move to bottom

I like those. Did they fit right on?
Logged

2010 V-Strom 650 with ABS and Tour Package
agolac
VSRI Supporter
****
11/11/08 2133 Hours
Posts: 156

DL650A K8 85 000 km
Rijeka, Croatia
Offline
« REPLY #29 on: 01/01/11 1639 Hours »
| All unread Move to top Move to bottom

Yes. No problem installing
Logged

Flames of the end inside us rest...
Pages: 1 2 » |  Go to Top of page
EMAIL THIS TOPIC | PRINT
Jump to:

 B l a c k - R a i n V.2 by C r i p ~ Powered by SMF 1.1.18 | SMF © 2013, Simple Machines MySQL | PHP | XHTML | CSS
Copyright V-Strom Riders International 2003-2013
